As awareness of drinking water safety continues to grow, home water purifiers have become a must-have appliance in more and more households. At the heart of these water purifiers is a critical component — the diaphragm pump.
In this article, we’ll explain how the JD diaphragm pump works, why it’s indispensable for RO water purifiers, how it powers the filtration system, and how JD Pumps achieved an industry-leading breakthrough: a long lifespan diaphragm pump that operates stably for over 10,000 hours.
A diaphragm pump is a compact, self-priming pump that converts electrical energy into water pressure and flow using a deformable elastic diaphragm. It consists of a motor, pump head, diaphragm, check valves, and other components. The motor drives an eccentric wheel, which makes the diaphragm reciprocate and create suction and discharge.
The flexible diaphragm moves back and forth under the motor’s eccentric motion:
When it moves backward, the pump chamber generates a vacuum, the inlet check valve opens, and water is sucked in.
When it moves forward, the chamber is pressurized, the inlet closes, and the outlet valve opens to push water out.
This design ensures efficient pressurization, quiet operation, and complete isolation between the motor and pump chamber to prevent leaks and contamination — key to a long lifespan water pump.
Most home RO (reverse osmosis) water purifiers require a certain water pressure (typically 0.28–0.6 MPa) to push tap water through the semi-permeable membrane. Without enough pressure, the purification efficiency drops significantly — or even stops producing water.
Here’s how the JD diaphragm pump solves this problem:
Boosts pressure: Delivers stable pressure to meet RO membrane requirements.
Adjustable flow: Dynamically adjusts flow based on demand.
Energy and water saving: Improves efficiency, reduces wastewater.
That’s why the diaphragm pump is called the “heart” of an RO water purifier, especially in areas with low water pressure.

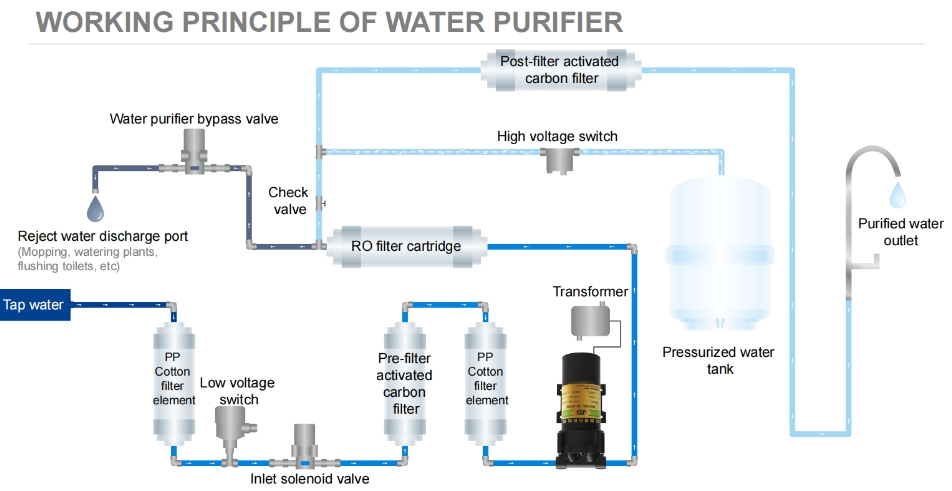

In a typical RO water system, the diaphragm pump powers the entire process:
Traditional diaphragm pumps last about 3,000 hours. But JD Pumps spent years innovating materials and design to develop a diaphragm pump with a stable lifespan exceeding 10,000 hours — far above industry standards.
This achievement comes from:
High-strength composite diaphragm material: Improved fatigue and aging resistance.
Low-friction, high-wear-resistant valves: Optimized pressure relief structure for durability and sealing.
High-efficiency cooling motor: Reduces temperature rise and delays motor aging.
Optimized brushes and flow path: Less wear, higher stability.
We tested JD diaphragm pumps under 5kg pressure for over 10,000 continuous hours — with excellent brush wear, no leaks, no pressure loss. Even large-flow models running under 8–10kg maintained over 3,000 hours of lifespan.
Thanks to its long lifespan, high pressure, quiet operation, self-priming, and corrosion resistance, the JD diaphragm pump is ideal not only for RO water purifiers, but also for:
Chemical liquid transfer, lab sampling, spray equipment — requiring high sealing and corrosion resistance.
Sprayers and irrigation systems — efficient and even fertilizer and pesticide spraying.
RV water supply, car washers, water tanks — strong suction and pressure improve shower experience.
JD diaphragm pumps can be customized to meet specific material and performance requirements for each application.
Fully upgraded, rigorously tested, and now in mass production — the new JD diaphragm pump helps customers build more durable, efficient water and fluid systems.
